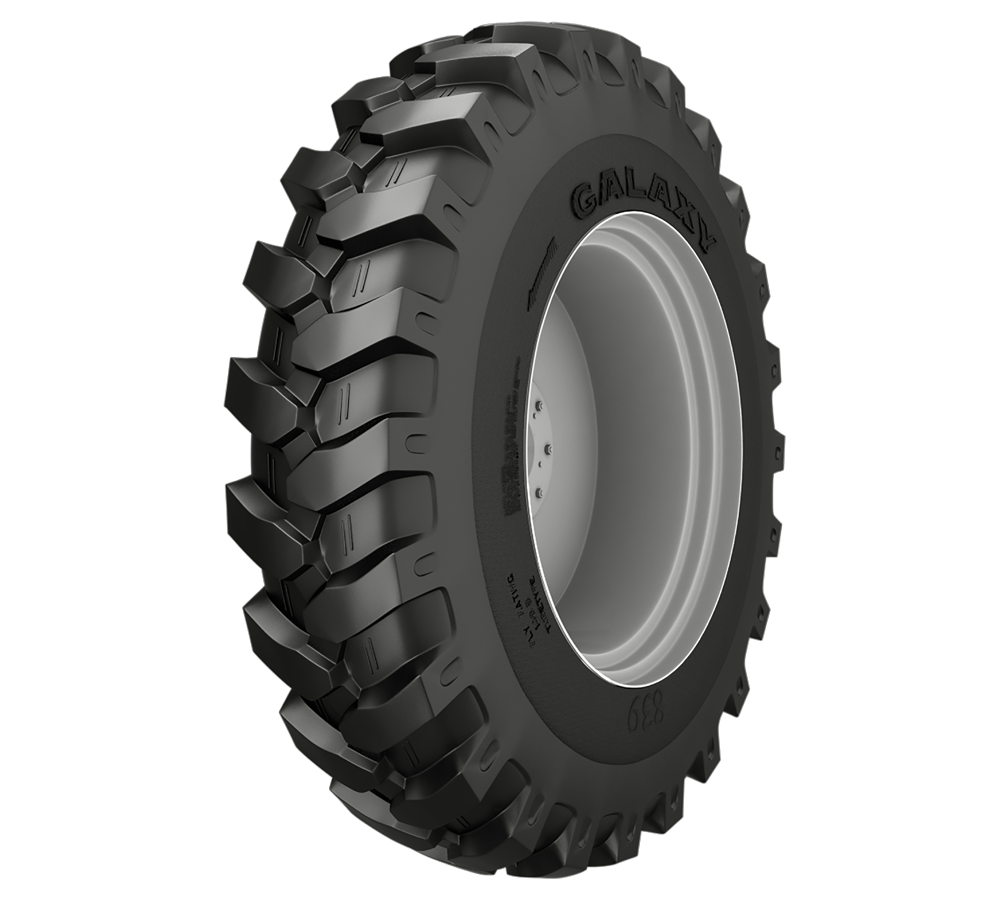

10.00-20 NHS 16 PR ALLIANCE 839 148B E-2 TT

Description

The Alliance 839 bias ply tyre has been designed for use with excavators working in construction and industrial applications. The strengthened casing provides the twin benefits of increased stability during digging operations and improved resistance to punctures helping to increase productivity and reduce potential machine downtime. The E-2 tread provides good traction and self-cleaning properties whilst improving roadability and driver comfort also in off-road conditions. A cut-and-chip resistant compound used during the manufacturing process also adds to the tyre's durability and extends its life cycle.

Features

  • Bias ply tyre for excavators.
  • Good stability and improved puncture resistance.
  • Cut-and chip resistant compound for increased durability.

Specification

Application
PLANT
Size
10.00-20 NHS
Size Suffix
NON HIGHWAY SERVICE
Brand
ALLIANCE
Pattern
839
Load/Speed Index
148B
Ply Rating
16
TT/TL
TT
Construction
BIAS
Nominal Section Width
10.00
Rim
20
TRA
E-2
Recommended Rim
7.5
Section Width
275 mm
Overall Diameter
1070 mm
Static Load Radius
493 mm
Rolling Circumference
3230 mm
Tread Depth
16.00 mm
Max Load (KG)/Speed (KM/H) 1
3150/50
Inflation Pressure Bar
7.50
Specification 1
CUT AND CHIP RESISTANT COMPOUND
Warranty
5 YEARS
