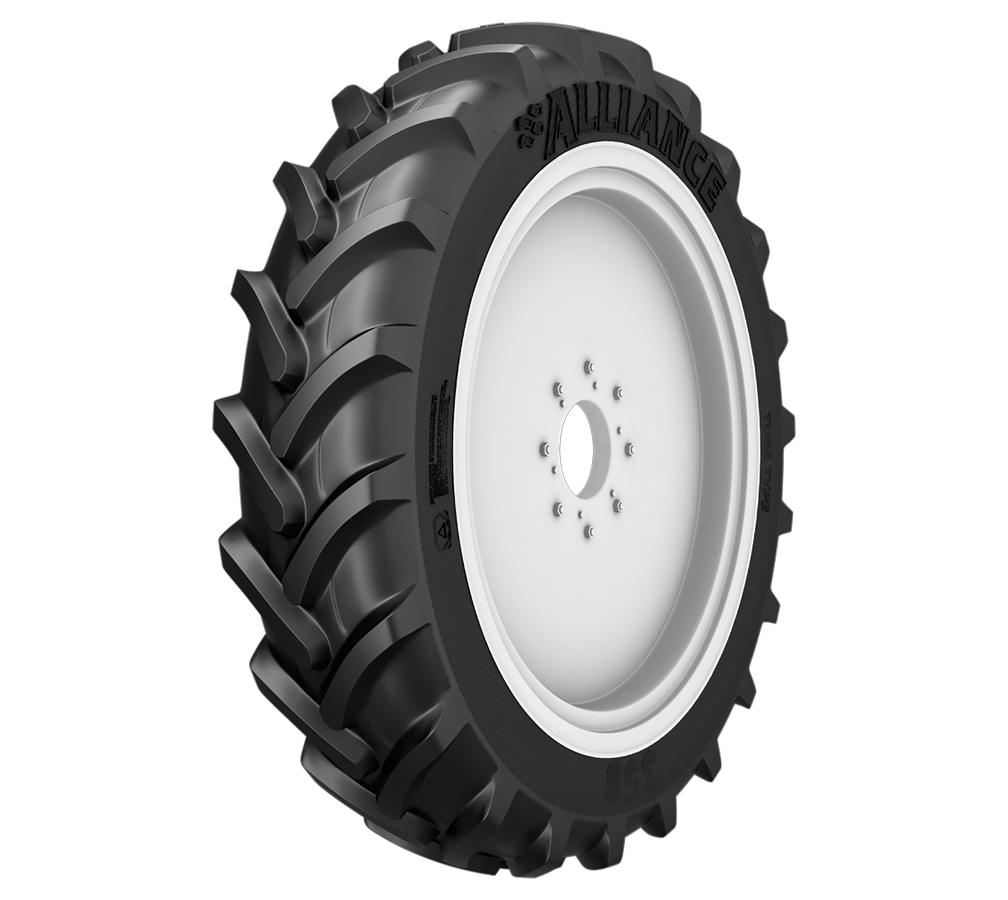

16.5/85-24 14 PR ALLIANCE 358 165A6/161A8 (FR) 153A6/149A8 (DW) R-1 TT

Description

The Alliance 358 range of tyres have been designed for use on tractors and implements working in agricultural applications. Reinforced tread lugs make the 358 pattern a particularly suitable drive wheel for tractors working in heavy-duty operations and requiring improved power transmission and traction properties. The multi-angled lugs also enable a smooth ride and handling on the road and in between field service. A strong casing helps to improve stability and durability and further extends the tyre's life cycle.

Features

  • Range of agricultural bias tyres with reinforced lugs.
  • Suitable for heavy-duty service operations.
  • Impressive traction properties and good handling on the road.

Specification

Application
PLANT
Size
16.5/85-24
Brand
ALLIANCE
Pattern
358
Load/Speed Index
165A6/161A8 (FR) 153A6/149A8 (DW)
Ply Rating
14
TT/TL
TT
Construction
BIAS
Nominal Section Width
16.5
Profile
85
Rim
24
TRA
R-1
Recommended Rim
W13
Permitted Rim
W14L W15
Section Width
417 mm
Overall Diameter
1344 mm
Static Load Radius
584 mm
Rolling Circumference
3873 mm
Tread Depth
40.00 mm
Max Load (KG)/Speed (KM/H) 1
5150/30 (FR) 3650/30 (DW)
Max Load (KG)/Speed (KM/H) 2
4625/40 (FR) 3250/40 (DW)
Inflation Pressure Bar
3.30
ECE 106
Yes
Warranty
7 YEARS
