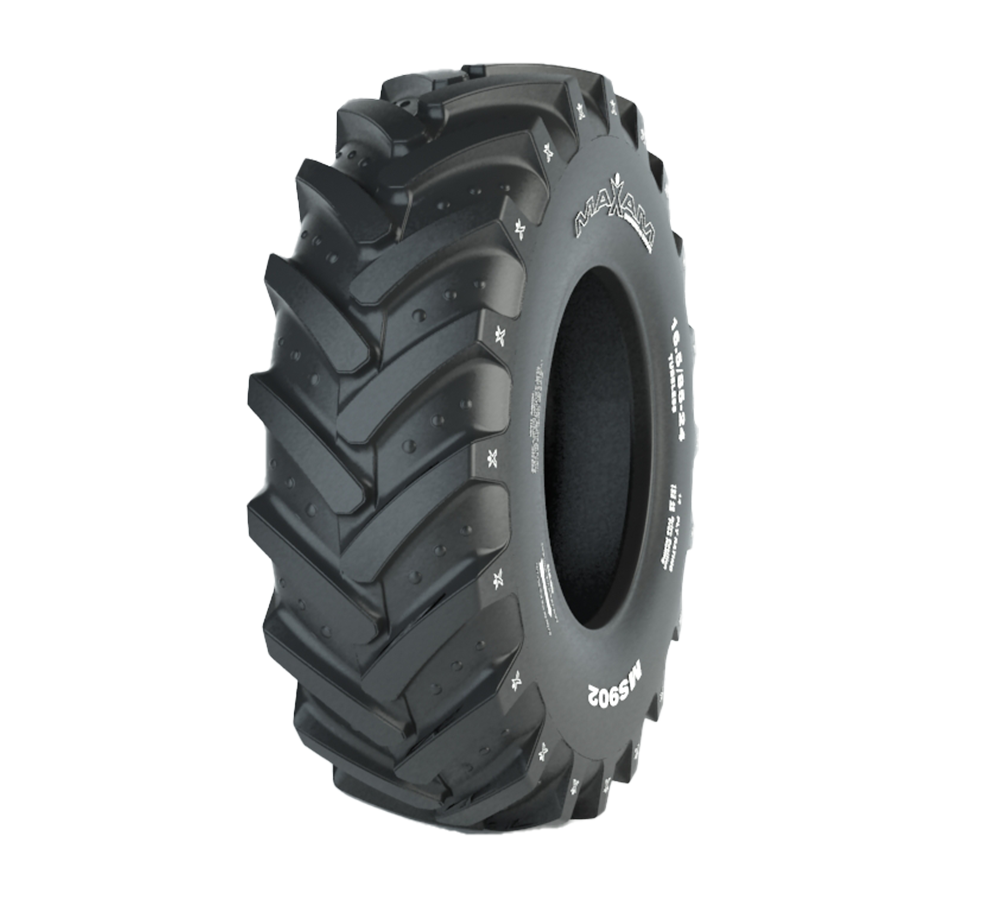

16.5/85-24 16 PR MAXAM MS902 168A8 R-1 TL

16.5/85-24 16 PR MAXAM MS902 168A8 R-1 TL

Description

Part of the rapidly growing Sailun Group, Maxam Tire is a global speciality tyre manufacturer and distributor. Centred around world class engineering and advanced manufacturing techniques, Maxam is committed to delivering solutions to off-highway customers worldwide. Modified R1 tread pattern for excellent traction and flotation in soft underfoot conditions.

Features

  • Tread design optimized with self-cleaning mud breakers.
  • Centre tie bar reduces vibration during over-the-road driving.
  • Deep undertread for improved puncture resistance.
  • Wear and cut resistant compound.

Specification

Application
PLANT
Size
16.5/85-24
Brand
MAXAM
Pattern
MS902
Load/Speed Index
168A8
Ply Rating
16
TT/TL
TL
Construction
BIAS
Nominal Section Width
16.5
Profile
85
Rim
24
TRA
R-1
Recommended Rim
13.00
Section Width
417 mm
Overall Diameter
1321 mm
Tread Depth
28.00 mm
Max Load (KG)/Speed (KM/H) 1
5600/40 FREE ROLLING
Max Load (KG)/Speed (KM/H) 2
4000/40 DRIVE
Inflation Pressure kPa
380
