560/60R22.5 IMP MAXAM FLOTXTRA MS961R 165D TL

Description

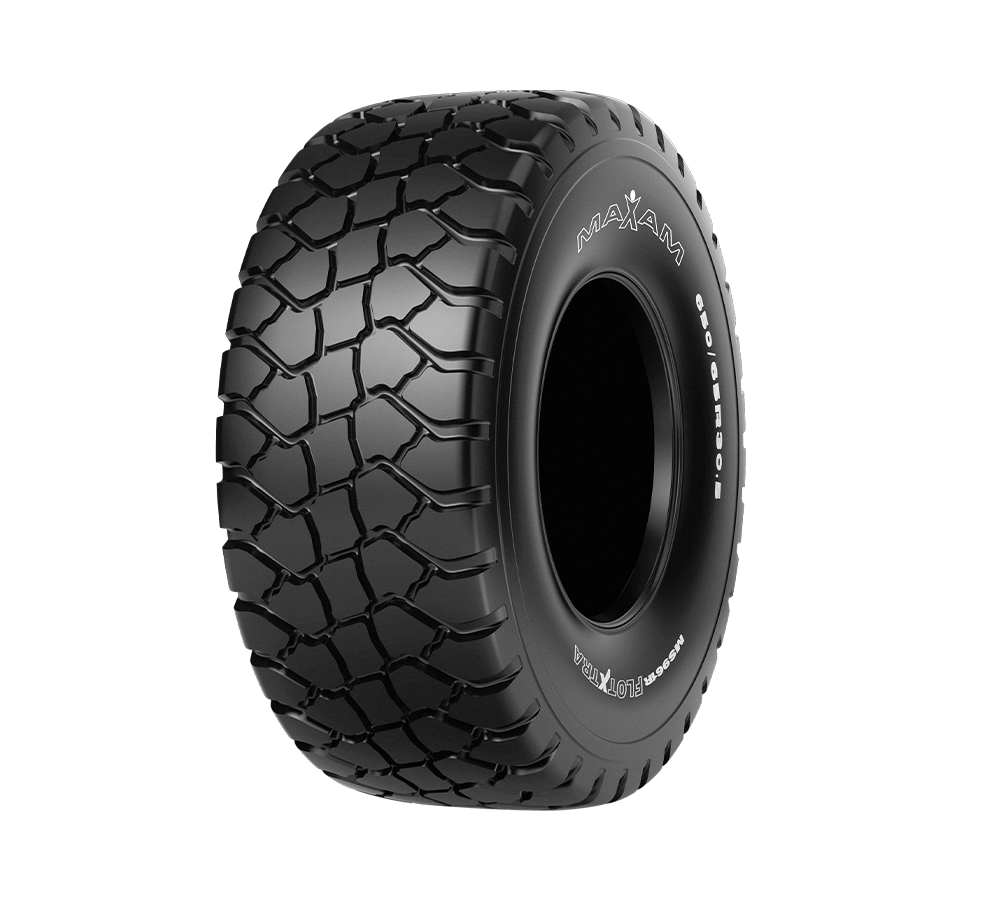

Part of the rapidly growing Sailun Group, Maxam Tire is a global speciality tyre manufacturer and distributor. Centred around world class engineering and advanced manufacturing techniques, Maxam is committed to delivering solutions to off-highway customers worldwide. MAXAM FLOTXTRA MS916R is a radial flotation implement tyre designed for agricultural tanker and trailer applications. The strong all-steel construction helps to maximise puncture resistance, promotes stability and increases the tyres durability. The non-directional tread pattern provides excellent traction properties whilst in the field and delivers a smooth drive when used on the road.

Features

  • Radial Implement Tyre.
  • All-steel construction provides high durability.
  • Long tread life.
  • Excellent lateral stability.

Specification

Application
FLOTATION
Size
560/60R22.5 IMP
Size Suffix
IMPLEMENT
Brand
MAXAM
Pattern
FLOTXTRA MS961R
Load/Speed Index
165D
TT/TL
TL
Construction
RADIAL
Nominal Section Width
560
Profile
60
Rim
22.5
Recommended Rim
AG16.00
Permitted Rim
16.00 17.00 AG20.00
Section Width
543 mm
Overall Diameter
1244 mm
Static Load Radius
560 mm
Rolling Circumference
3770 mm
Tread Depth
19.00 mm
Max Load (KG)/Speed (KM/H) 1
5150/65
Inflation Pressure Bar
5.00
Specification 1
ALL STEEL
ECE 106
Yes
Warranty
8 YEARS

Disclaimer: All reasonable efforts have been made to ensure the product information within this site is complete, accurate and up to date. All technical information is provided by the manufacturers and serves as a guideline only. However, we do not make any representations, warranties, or guarantees (whether express or implied) that the content is complete, accurate, or up to date. To the maximum extent permitted by law, we will not be responsible for damages of any nature resulting from the use or reliance upon the product information contained in this site.
